Dream Color RGB 160 LEDs Flexible Light Strip kit

Part Number : WFLS-160LEDs

easybanner
Choose your LED Product and BUY!

Please Choose:



* Required Fields

RRP $156.95

$156.95

(Price ex. VAT)

Stock Status: In Stock
Buy in Bulk and Save:
Qty Discounts Off Price
1-4
$156.95
5-9
$141.26
10-14
$133.41
15+
$125.56
* Discounts may vary based on options above
Email US NOW & PLACE YOUR ORDER: Sales@LEDStripRoom.com
Next Day Delivery - FREE on orders over $199

Cut off time 4pm / 48hr Delivery also available

  • hours

  • mins

  • secs

Time left to qualify for Next Day Delivery

More Views




  • Product Description

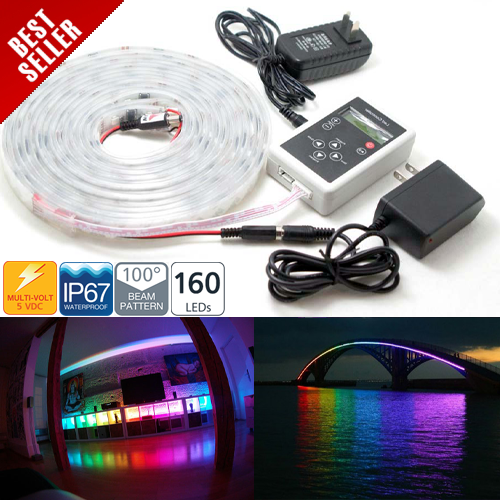

Dynamic color chasing, sequencing, changing, and also static color modes available on the Dream-Color Controller and RGB Strip, individually addressable LEDs allow for sequencing modes. Silicone Encased waterproof flexible LED light strip with 160 high power 5050SMD RGB LEDs programmable for chasing patterns. 5 meter (16.45 ft) waterproof flexible light strips. For use with WDC1606 Controller only. 5VDC operation. Uses HL1606S controller IC.

Product Specifications:

Beam Pattern: Â 100 degree
Color: Â RGB
Current Draw: Â 2445mA
Current Draw per Foot: Â 149mA
IP Rating: Â Waterproof IP67 Â
Number of LEDs in Unit: Â 160 LEDs
LED Type: Â 5050 SMD
LEDs per Segment: Â 160
Length: Â 500cm(197in)
Lifetime: Â 40000 Hours
Lumen: Â 400 Lumen
Lumen Per Foot: Â 24 lm/ft
Lumen Per LED: Â 2.5
MCD per Foot: Â 10854
MCD Per LED: Â 1114
Millicandela[1]: Â 178200mcd
Price Per Foot: Â 8.49
Strip Width: Â 16mm
Suitable for Vehicles: Â No
Total Power Consumption: Â 12.2 Watts
Type: Â Flexible Light Strips
Operating Voltage Range: Â 5 VDC
Wattage per Foot: Â 0.8 Watts
Wavelength: Â 470 nm/525 nm/626 nm
Wire Length: Â 50.8cm(20in)
Dimensions: 502cm(197.64") x 1.6cm(0.63") x 0.55cm(0.22")

All specifications are subject to change without notice
1. Royal Blue is binned by radiometric power and peak wavelength rather than photometric lumens and dominate wavelength

Product Information:

Applications: Color selection, change, and chase with speed, direction and length control for accent lighting
Function: Control 160LEDs series Light Strips using controller unit or RF remote
Operating Voltage: 12 Volts DC (use included 12VDC 1A Compact Power Supply)
Connection Mode: Common Anode (+)
Output: 2 SPI signals
Maximum Load Current: -
Output Power: -
Static Power Consumption: 2.2 Watts
Overall Size: (L)94 X (W)58 X (H)26 mm
Control Method: 6 button on Controller Unit or wireless RF Remote Control
Batteries Required: 23A, 12V battery for Remote (included)
Modes: 83 Color chasing or changing
Operating Temperature: -25~60°C

Standards and Certifications:


LED Strip Room is a brand you can trust, with years of lighting experience, we invest heavily in quality control and sourcing the best component parts available to us.

As the USA's No.1 online LED retailer, at LED Strip Room we pride ourselves on only stocking the highest-quality lighting products, and we are committed to making sure you are 100% satisfied with your purchase. For complete peace of mind, we offer an unrivalled five-year warranty on all our Flexible Light Strip, as well as 30-day hassle-free returns.


WDC1606: 12VDC Dream Color RGB LED Controller:

The model WDC1606 controller is designed to be used with the 160LEDs series Silicone Enclosed RGB Flexible Light Strip. Control the sequence mode, chase length, and speed of 83 different dynamic chasing patterns from the RF Remote Controller or directly on the RGB Controller unit. The Dream-Color systems controls each RGB LED in the strip independently.

Features:

160 high power 5050SMD RGB LEDs
100 Degree beam pattern
IP67 Waterproof Rating
Dynamic color chasing, sequencing, changing
Static color modes
Silicone Encased

Applications:

Sign LED Lights
Retail LED Lights
Boat LED lighting
Party lighting
Color chasing LED accent lights
Entertainment center LED lights

Note:

VERY IMPORTANT: Supply voltage for Controller is 12 Volts DC, power with included 12VDC Power Supply, do not exceed
VERY IMPORTANT: Supply voltage for SWDC-RGB series Light Strips is 5 Volts DC, 12 Volts will destroy the SWDC-RGB series LED Strip
Connect according to the drawing below.
+ (plus) and - (minus) #IC buttons will only work when unit is off.
Each Controller has a handheld Remote matched to it and will only work with it's matched remote. One remote cannot operate multiple controllers.
Controller can control a maximum of 30 meters of our Flexible RGB LED Strip. Over 30 meters, the Strips have to connect with an amplifier to reinforce the transmission of signal.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Strip can be trimmed down to length by cutting it every 2 LEDs. If this is done waterproofing accessories are required on end that was cut.

Included in the kit:

1. 1 x DC5V 5Amp Power supply
2. 1 x RF Dream Color LED Strip Controller
3. 1 x DC12V Power supply for Controller
4. 1 x Dream Color 160 LEDs Flexible LED Strip
